Black Body Services

Electron Systems will calibrate your black body source using equipment traceable to national standards



The temperature range available is 0°C to 1200°C



The service includes



Inspection of the black body source for correct operation



Report of any faults found



Multiple point temperature calibration run with stability check



Comprehensive calibration certificate

Black Body Custom Designs

Black Body Calibration Services

Electron Systems offer a service to supply non standard black body sources and related equipment.



Electron Systems will design, manufacture, calibrate and deliver your equipment.



Some examples of black body sources and peripherals are-



0oC to 100oC temperature range

Fast temperature setting

100mm by 100mm source area

Compact design with built in controller for portable use

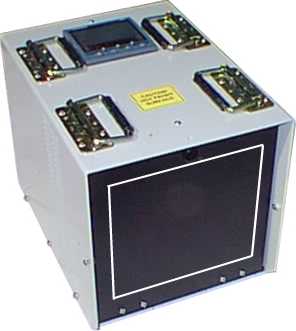

Peltier Controlled Black Body

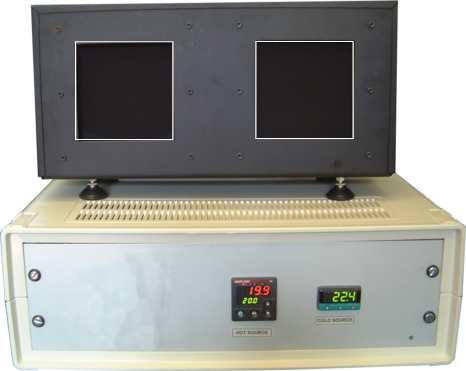

Dual Black Body Source

0oC to 100oC peltier controlled

50oC to 400oC resistive heater controlled

100mm by 100mm source area

Dual controllers provide two test temperatures simultaneously

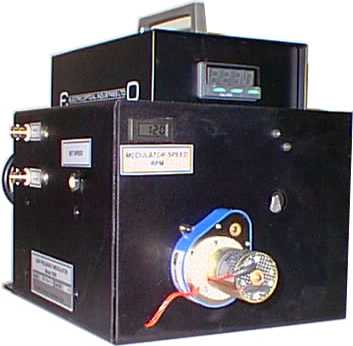

Black Body with Blade Type Modulator

Dual Source Black Body

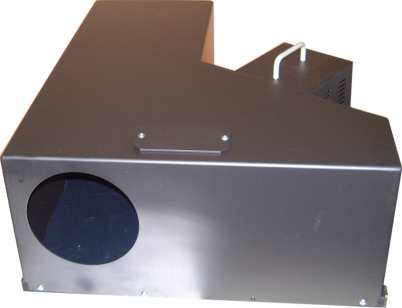

Collimator and Black Body

Black body source with self contained blade type modulator

The temperature range, aperture, and chopper frequency were  designed to the customer's specification



Off axis mirror type collimator

Built in black body source

Designed and built to customer's specification
